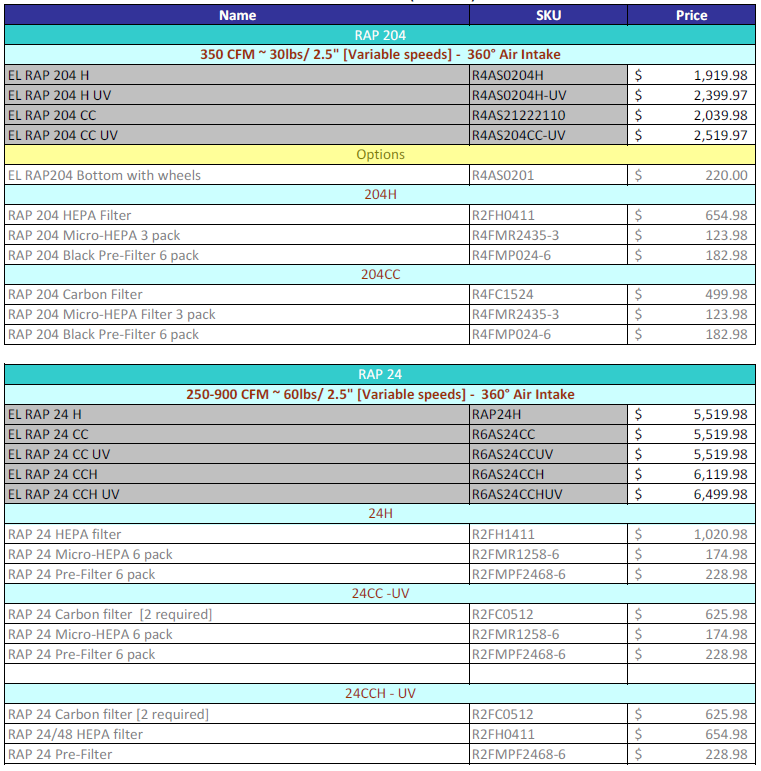

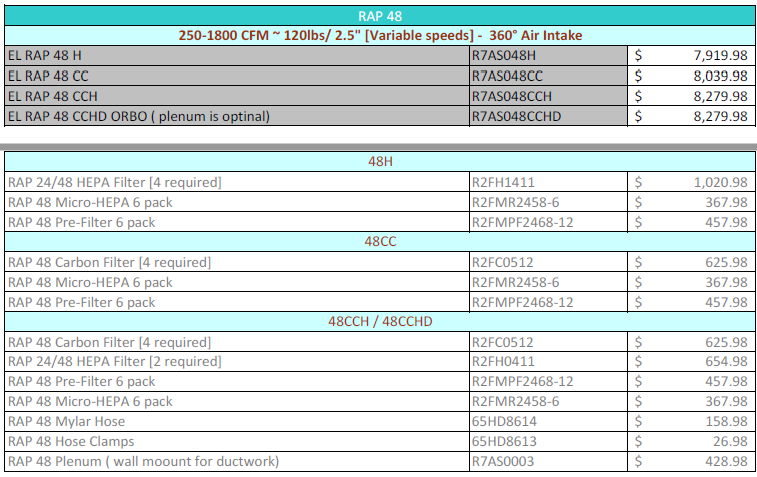

Click Here For Price List, Unit and Replacement Filters
Ordering / More Info: Call 1-800-626-0664
RAP Series Description
- The Electrocorp Radial Air Purifiers (RAPs) represent an upgrade to our RSU industrial air scrubbers.
- Designed initially for clean rooms and critical care environments, our new RAPs are now capturing gas and particle phase contaminants in a broad range of industrial, commercial, home and office applications.
- The change in design from our more industrial looking RSU Series has allowed our RAP Series to be even easier to service.
- As with our RSUs, our RAP model air scrubbers eject the scrubbed air out of the top of the unit to the ceiling to create a room-wide ceiling-to-floor laminar airflow pattern for efficient contaminant control.
- It has a 360 degree air-in draw, and is efficient in removing approximately 90% of all gas phase contaminants (VOCs) per air pass.
- UL/CSA listed blower - Continuous duty rated – run 24 hours - Internal thermal protection
- Available voltage - VAC: 115/60Hz or 220/50Hz
- Sound level (from low to high speed at 1 meter)
EL RAP204CC - 350 CFM
Technical Characteristics
Filtration system:
Carbonized 10 micron pre-filter and a carbon filter wrapped with an electrostatic particle filter, material rated at 99% efficient at 0.1 microns
Dimensions:
29" x 12"
Operating weight:
50 lbs.
CFM:
350
Decibels:
30-55 dB
Carbon:
30 lbs.
Maneuverability:
Lightweight and portable, no wheels
Price / Ordering / More Info: Call 1-800-626-0664
EL RAP204H - 350 CFM
Technical Characteristics
Filtration system:
Carbonized 10 micron pre-filter and a medical-grade HEPA filter wrapped with an electrostatic particle filter, material rated at 99% efficient at 0.1 microns
Dimensions:
29" x 12"
Operating weight:
35 lbs.
CFM:
350
Decibels:
30-55 dB
Carbon:
N / A
Maneuverability:
Lightweight and portable, no wheels
Price / Ordering / More Info: Call 1-800-626-0664

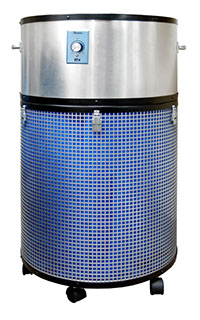

EL RAP24CC - 950 CFM
(Requires 2 Carbon Filters: #1 & #2)
RAP 24 CC - 250 - 900 CFM
Technical Characteristics
Filtration system:
Blue tacky 10 micron pre-filter and a carbon filter wrapped with an electrostatic particle filter, material rated at 99% efficient at 0.1 microns
Dimensions:
37" x 22"
Operating weight:
130 lbs.
CFM:
250 - 900
Decibels:
50dB / 61dB
Carbon:
60 lbs
Maneuverability:
5 x 2" diameter wheels
Price / Ordering / More Info: Call 1-800-626-0664
EL RAP24H - 950 CFM
RAP 24 H - 250 - 900 CFM
Technical Characteristics
Filtration system:
Blue tacky 10 micron pre-filter and medical-grade HEPA filter wrapped with an electrostatic particle filter, material rated at 99% efficient at 0.1 microns
Dimensions:
37" x 22"
Operating weight:
75 lbs.
CFM:
250 - 900
Decibels:
50dB / 61dB
Carbon:
N/A
Maneuverability:
5 x 2" diameter wheels
Price / Ordering / More Info: Call 1-800-626-0664
EL RAP24CCH - 950 CFM
RAP 24 CCH - 250 - 900 CFM
(Requires 2 Carbon Filters: #1 & #2)
Technical Characteristics
Filtration system:
Blue tacky 10 micron pre-filter, carbon filter, medical-grade HEPA filter wrapped with an electrostatic particle filter, material rated at 99% efficient at 0.1 microns
Dimensions:
37" x 22"
Operating weight:
135 lbs.
CFM:
250 - 900
Decibels:
50dB / 61dB
Carbon:
60 lbs
Maneuverability:
5 x 2" diameter wheels
Price / Ordering / More Info: Call 1-800-626-0664

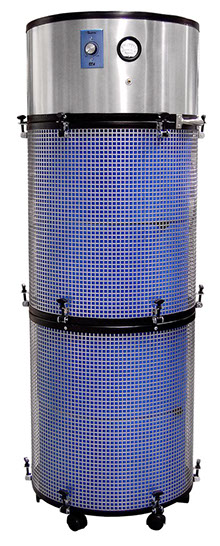

EL RAP48CC - 1800 CFM
RAP 48 CC - 500 - 1800 CFM
(Requires 4 Carbon Filters: #1, #2, #3, & #4)
Technical Characteristics
Filtration system:
Blue tacky 10 micron pre-filter and a carbon filter wrapped with an electrostatic particle filter, material rated at 99% efficient at 0.1 microns
Dimensions:
62" x 22"
Operating weight:
200 lbs.
CFM:
500-1800
Decibels:
50dB / 64dB
Carbon:
120 lbs.
Maneuverability:
5 x 2" diameter wheels
Price / Ordering / More Info: Call 1-800-626-0664
EL RAP48H- 1800 CFM
RAP 48 H - 500 - 1800 CFM
(Requires 2 HEPA Filters: #1 & #2)
Technical Characteristics
Filtration system:
Blue tacky 10 micron pre-filter and medical-grade HEPA filter wrapped with an electrostatic particle filter, material rated at 99% efficient at 0.1 microns
Dimensions:
62" x 22"
Operating weight:
100 lbs.
CFM:
500-1800
Decibels:
50dB / 64dB
Carbon:
N/A
Maneuverability:
5 x 2" diameter wheels
Price / Ordering / More Info: Call 1-800-626-0664
EL RAP48CCH- 1800 CFM
RAP 48 CCH - 500 - 1800 CFM
(Requires 4 Carbon Filters: #1. #2, #3, & #4
2 HEPA Filters: #1 & #2 )
Technical Characteristics
Filtration system:
Blue tacky 10 micron pre-filter, carbon filter, medical-grade HEPA filter wrapped with an electrostatic particle filter, material rated at 99% efficient at 0.1 microns
Dimensions:
62" x 22"
Operating weight:
283 lbs.
CFM:
500-1800
Decibels:
50dB / 64dB
Carbon:
120 lbs.
Maneuverability:
5 x 2" diameter wheels
Price / Ordering / More Info: Call 1-800-626-0664
*Free Ground, Standard Shipping to the Continental US and Canada / Specs & Prices subject to change without prior notice
